8 Funnel Plots for Fair Comparisons

8.2 Installing and Launching R Packages

In this exercise, four R packages will be used. They are:

  • FunnelPlotR for creating funnel plot.

  • ggplot2 for creating funnel plot manually.

  • knitr for building static html table.

  • plotly for creating interactive funnel plot.

pacman::p_load(tidyverse, FunnelPlotR, plotly, knitr)

8.3 Importing Data

covid19 <- read_csv("data/COVID-19_DKI_Jakarta.csv") %>%
  mutate_if(is.character, as.factor)

8.4 FunnelPlotR methods

FunnelPlotR package uses ggplot to generate funnel plots. It requires a numerator (events of interest), denominator (population to be considered) and group. The key arguments selected for customisation are:

  • limit: plot limits (95 or 99).

  • label_outliers: to label outliers (true or false).

  • Poisson_limits: to add Poisson limits to the plot.

  • OD_adjust: to add overdispersed limits to the plot.

  • xrange and yrange: to specify the range to display for axes, acts like a zoom function.

  • Other aesthetic components such as graph title, axis labels etc.

8.4.1 FunnelPlotR methods: The basic plot

funnel_plot(
  .data = covid19,
  numerator = Positive,
  denominator = Death,
  group = `Sub-district`,
  title = "The basic plot"
)

A funnel plot object with 267 points of which 0 are outliers.
Plot is adjusted for overdispersion.

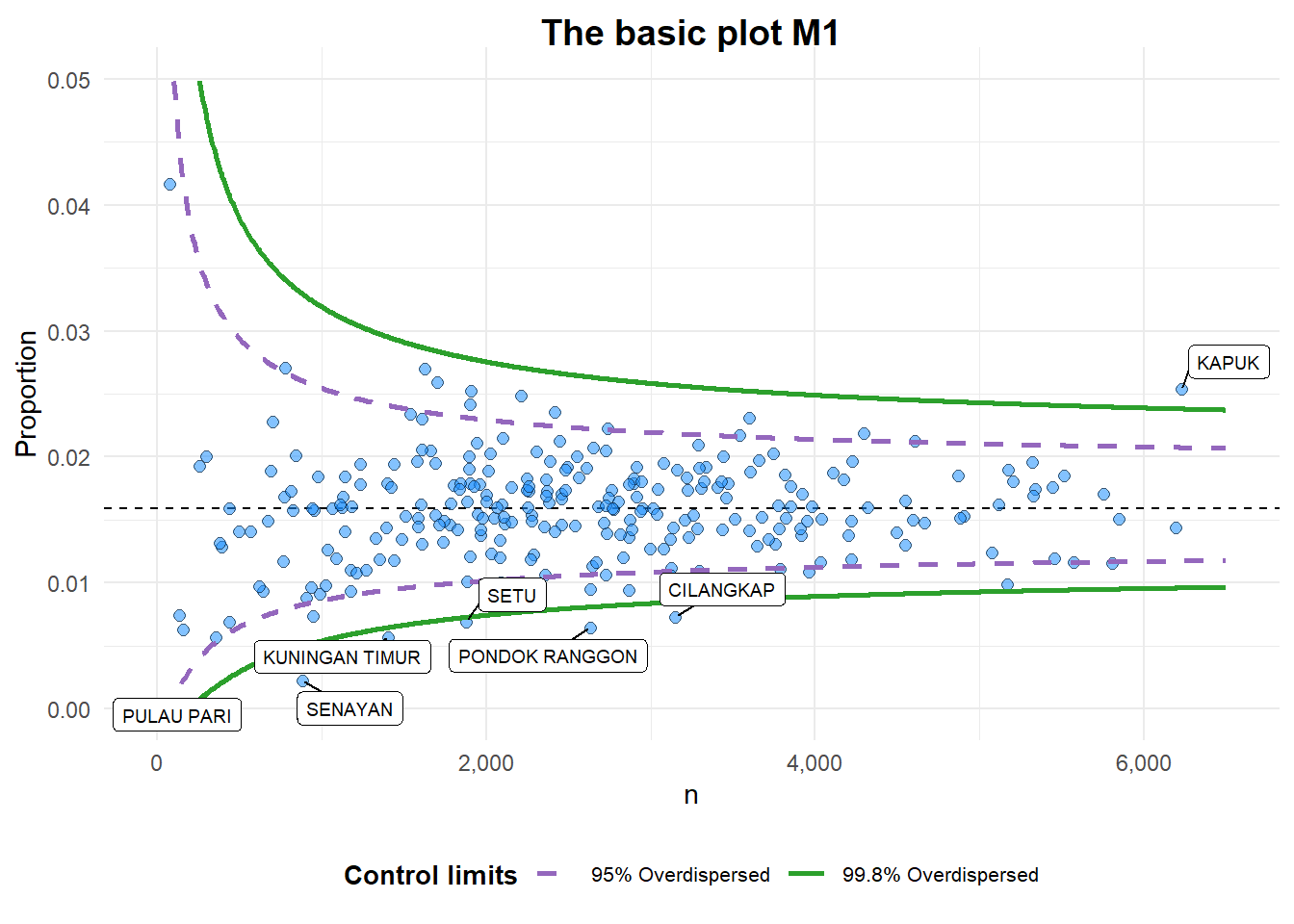

8.4.2 FunnelPlotR methods: Makeover 1

funnel_plot(
  .data = covid19,
  numerator = Death,
  denominator = Positive,
  group = `Sub-district`,
  data_type = "PR",     #<<
  x_range = c(0, 6500),  #<<
  y_range = c(0, 0.05),   #<<
  title = "The basic plot M1"
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

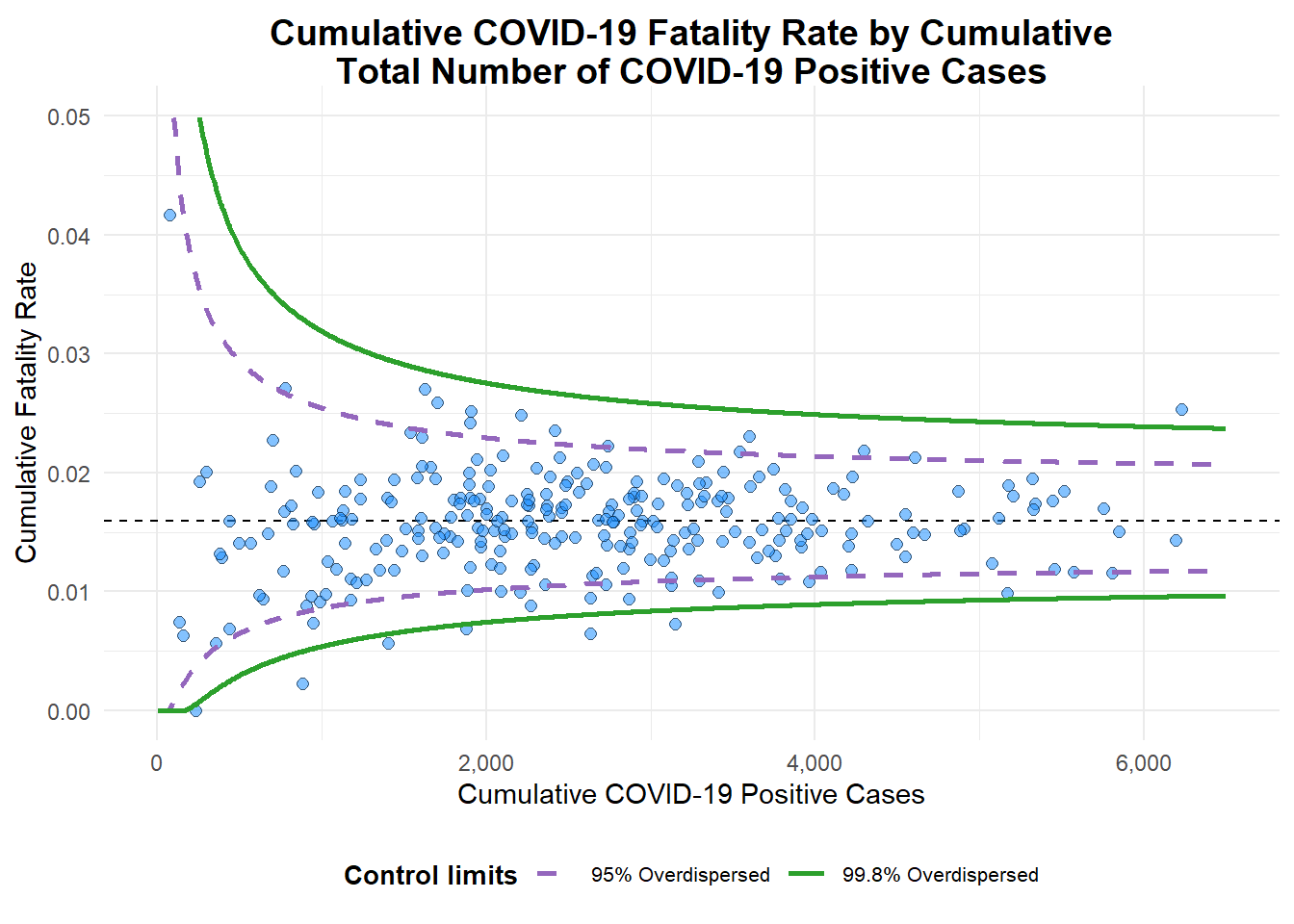

8.4.3 FunnelPlotR methods: Makeover 2

funnel_plot(
  .data = covid19,
  numerator = Death,
  denominator = Positive,
  group = `Sub-district`,
  data_type = "PR",
  x_range = c(0, 6500),
  y_range = c(0, 0.05),
  label = NA,
  title = stringr::str_wrap("Cumulative COVID-19 Fatality Rate by Cumulative Total Number of COVID-19 Positive Cases",width=50), #<<
  x_label = "Cumulative COVID-19 Positive Cases", #<<
  y_label = "Cumulative Fatality Rate"  #<<
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

8.5 Funnel Plot for Fair Visual Comparison: ggplot2 methods

8.5.1 Computing the basic derived fields

df <- covid19 %>%
  mutate(rate = Death / Positive) %>%
  mutate(rate.se = sqrt((rate*(1-rate)) / (Positive))) %>%
  filter(rate > 0)
fit.mean <- weighted.mean(df$rate, 1/df$rate.se^2)

8.5.2 Calculate lower and upper limits for 95% and 99.9% CI

number.seq <- seq(1, max(df$Positive), 1)
number.ll95 <- fit.mean - 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul95 <- fit.mean + 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ll999 <- fit.mean - 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul999 <- fit.mean + 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
dfCI <- data.frame(number.ll95, number.ul95, number.ll999,
                   number.ul999, number.seq, fit.mean)

8.5.3 Plotting a static funnel plot

p <- ggplot(df, aes(x = Positive, y = rate)) +
  geom_point(aes(label=`Sub-district`),
             alpha=0.4) +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll95),
            linewidth = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul95),
            linewidth = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll999),
            linewidth = 0.4,
            colour = "grey40") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul999),
            linewidth = 0.4,
            colour = "grey40") +
  geom_hline(data = dfCI,
             aes(yintercept = fit.mean),
             linewidth = 0.4,
             colour = "grey40") +
  coord_cartesian(ylim=c(0,0.05)) +
  annotate("text", x = 1, y = -0.13, label = "95%", size = 3, colour = "grey40") +
  annotate("text", x = 4.5, y = -0.18, label = "99%", size = 3, colour = "grey40") +
  ggtitle("Cumulative Fatality Rate by Cumulative Number of COVID-19 Cases") +
  xlab("Cumulative Number of COVID-19 Cases") +
  ylab("Cumulative Fatality Rate") +
  theme_light() +
  theme(plot.title = element_text(size=12),
        legend.position = c(0.91,0.85),
        legend.title = element_text(size=7),
        legend.text = element_text(size=7),
        legend.background = element_rect(colour = "grey60", linetype = "dotted"),
        legend.key.height = unit(0.3, "cm"))
Warning in geom_point(aes(label = `Sub-district`), alpha = 0.4): Ignoring
unknown aesthetics: label

8.5.4 Interactive Funnel Plot: plotly + ggplot2

fp_ggplotly <- ggplotly(p,
  tooltip = c("label",
              "x",
              "y"))
fp_ggplotly
